Optimum Lathe D200 X 300 Vario | BL3420310

Optimum Lathe D200 X 300 Vario | BL3420310

R31,459.00 Incl. VAT

Out of stock. Learn more.

SKU: UPP-BL3420310 Categories: ,

Description

Lathe with infinitely variable speed control and digital speed

Technical Specifications

Connection230 V / 1 Ph ~50 Hz
Driving motor spindle600 W
Spindle taperMT 3
Spindle hole
Tool holder seat
Rod opening lathe chuck
Tool holder seat heightmax. 12 mm
Centre height100 mm
Centre width300 mm
Turning diameter (max.)200 mm
Turning Ø over cross slide110 mm
Bed width100 mm
Spindle speeds150 – 2,500 min-1
Number of steps2 steps, electrically adjustable speed
Travel top slide55 mm
Travel cross slide75 mm
Longitudinal feed0.1 / 0.2 mm/U
Pitch – Metric (14)0.25 – 3 mm/U (14)
Pitch – Inch (12)44 – 8 Gg/1 (12)
Tailstock seatMT 2
Tailstock – sleeve travel65 mm

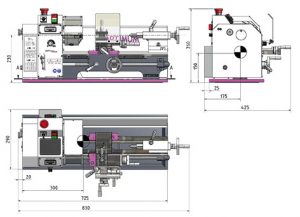

Dimensions (L x W x H)830 x 425 x 360 mm
Net weight61 kg

Description

  • Lathe with infinitely variable speed control and digital speed
  • Precise manufacturing
  • Heavily ribbed prism bed made of steel casting, inductively hardened
    and precision ground
  • Hardened and ground bed guideways
  • Hardened spindle nose (DIN 6350)
  • Guaranteed true running accuracy of the spindle nose better than 0.009 mm
  • Automatic longitudinal/leading spindle drive
  • With longitudinal slide, cross slide and top slide
  • Right-/left-handed rotation switchable on
  • Emergency-stop push button
  • Lathe chuck protection
  • Thrust bearing
  • Leading spindle run on two porous bearings
  • Large threading range due to set of change gears
  • Change gear train
  • EMC filter, class B (used in households)

Features:

Digital speed display

  • Easy to read digital speed display

Chip protection

  • at the top slide

Quadruplicate tool holder

  • turnable

Rolled trapezoid thread

  • Lead screw

Tailstock

  • Adjustable for taper turning
  • Tailstock spindle sleeve and handwheel with adjustable precision scaling of 0.02 mm

Main spindle

  • Hardened and with re-adjustable accurate tapper roller bearings
  • Taper roller bearing of P5 quality
  • Cylindrical centring consumption
  • H ardened spindle nose with a Ø 21 mm spindle hole

Lathe chuck

  • True running accuracy 0.04 mm

Delivery Information

  • Three jaw chuck Ø 100 mm
  • Steady centre MT 2 and MT 3
  • Splash board and Chip tray
  • Quadruple tool holder
  • Change gear kit
  • Operating tool
